Distribution Manifolds - 4 Branches

Distribution Manifolds with operating valve 40 inter-axis









WD3709

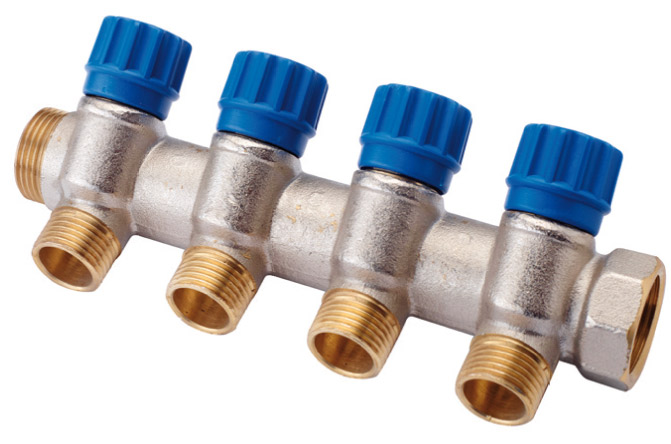

Distribution manifold with multiple connection, 2-3-4 branches with operating valve, on request with M or F ISO 228 F sockets, 40 mm inter-axis, forged CW617N brass, 3/4”-1” MF ISO 228 connection, nickel-plated or sandblasted brass fi nish, operating hand grips available in other colours.

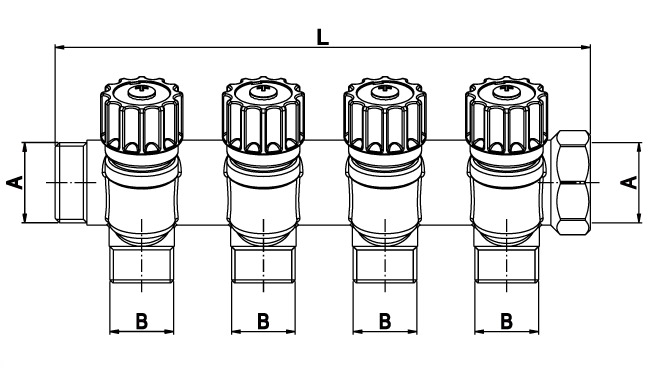

COD. A B L H P CH
WD 3709 G 3/4” MF G 1/2” M  Ø INT. 16 176 68 56 32
WD 3709/SP G 3/4” MF G 1/2” M SEDE PIANA 176 68 56 32
WD 3944 G 3/4” MF 24X19 M 176 68,5 56 32
WD 3711 G 1” MF G 1/2” M  Ø INT. 16 176 76 61,5 38
WD 3711/SP G 1” MF G 1/2” M SEDE PIANA 176 76 61,5 38
WD 3964 G 1” MF 24X19 M 176 76,5 61,5 38
